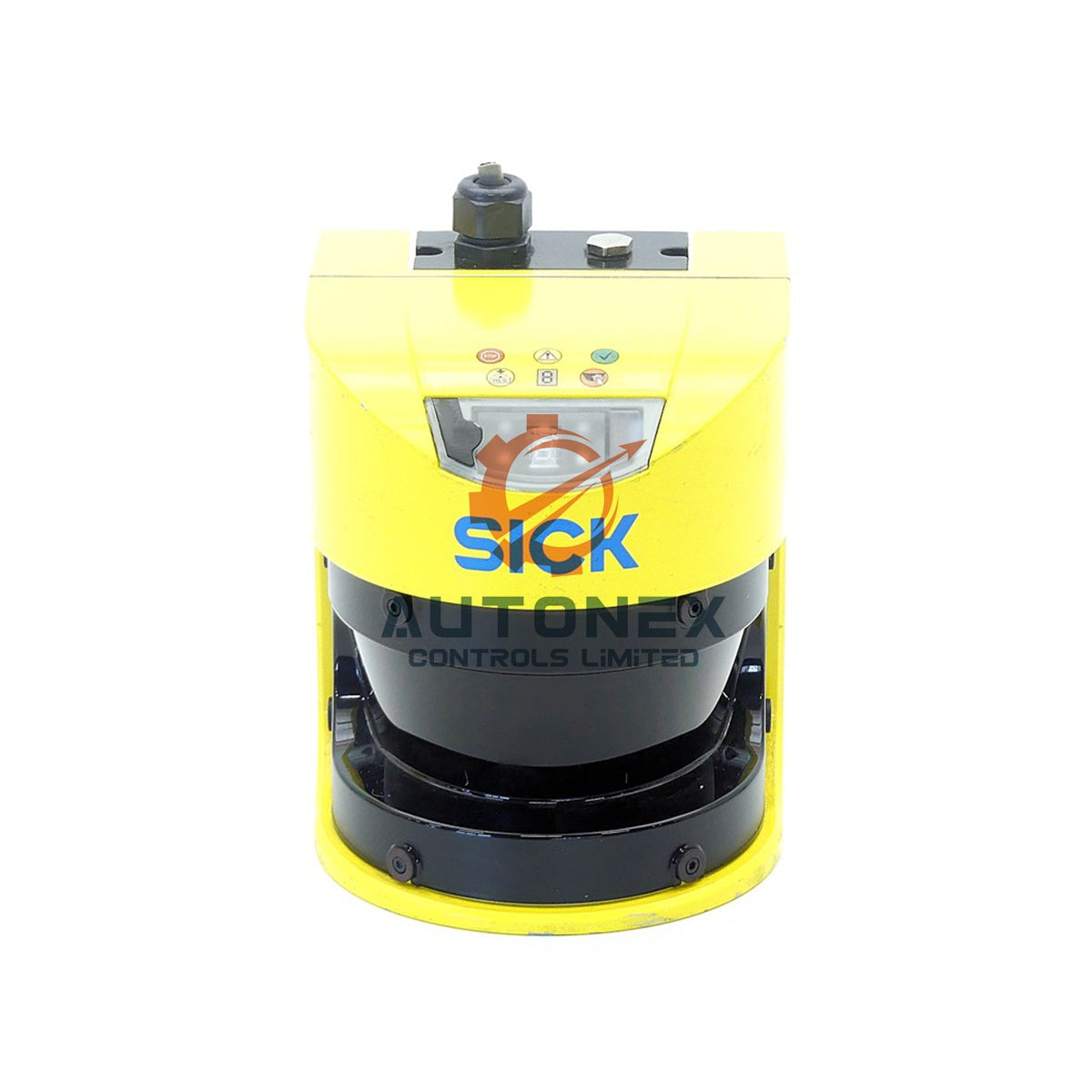

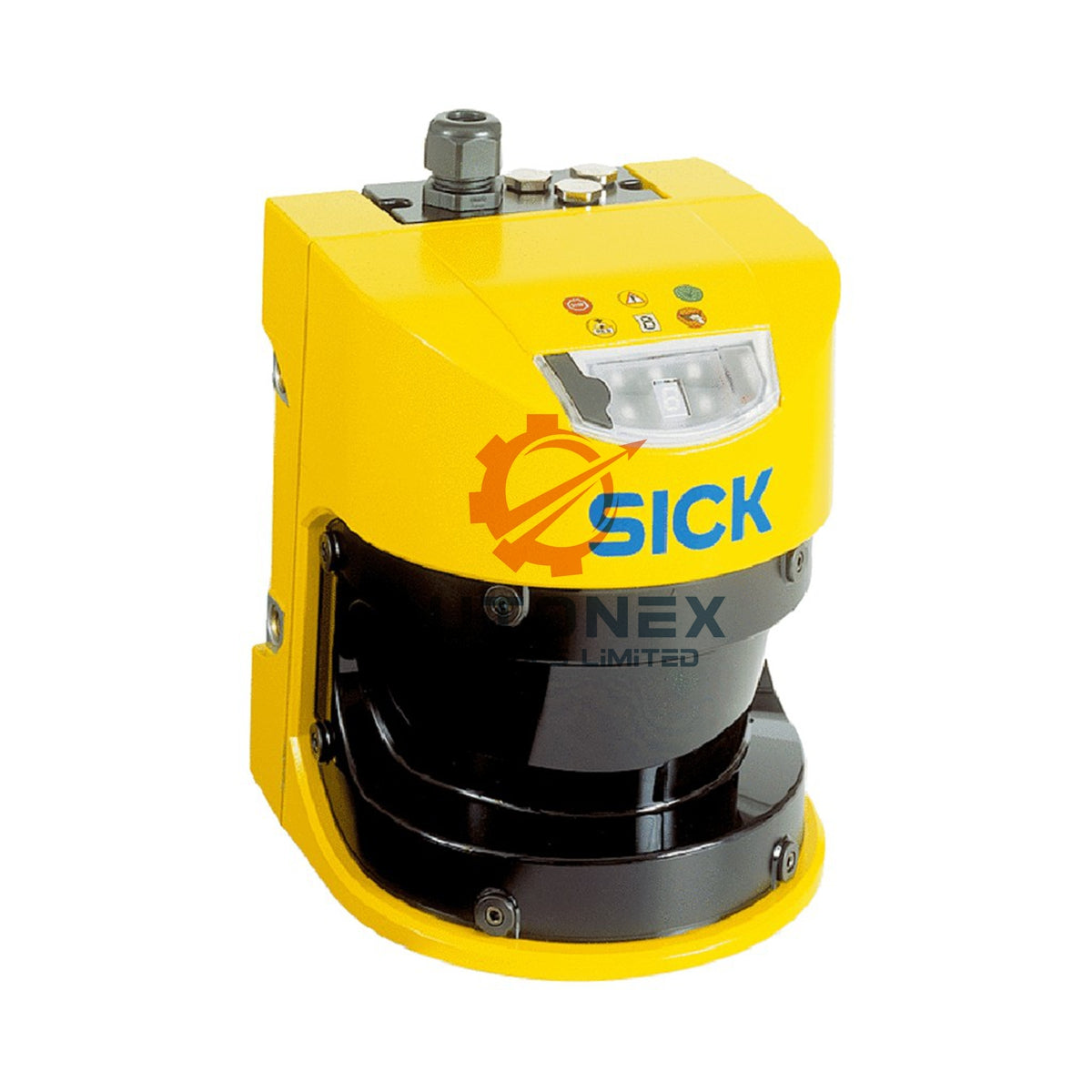

S30A-7111CL SICK S3000 PROFINET IO Safety Laser Scanner

SICK S30A-7111CL Safety Laser Scanner – S3000 PROFINET IO Advanced

Technical Specifications

• Brand: SICK
• Model: S30A-7111CL
• Series: S3000 PROFINET IO Advanced
• Part Number: 1052595
• Type: Safety Laser Scanner
• Design: Sensor without system plug
• Application: Indoor
• Protective Field Range: 7 m
• Warning Field Range: 49 m (20 m at 20% reflectivity)
• Distance Measuring Range: 49 m
• Simultaneously Monitored Protective Fields: 2
• Field Set Type: Dual field sets
• Number of Field Sets: 4
• Number of Fields: 8
• Number of Monitoring Cases: 4
• Scanning Angle: 190°
• Resolution (Configurable): 30 mm, 40 mm, 50 mm, 70 mm, 150 mm
• Angular Resolution: 0.5° or 0.25° (depends on range and resolution)
• Response Time: 60 ms
• Protective Field Supplement: 100 mm
• Multiple Samplings: 2 to 16 (configurable)
• Automatic Reset Delay: 120 ms to 4,920 ms (configurable)
• Type: Type 3 (IEC 61496)
• Safety Integrity Level: SIL 2 (IEC 61508)
• Category: Category 3 (EN ISO 13849)
• Performance Level: PL d (EN ISO 13849)
• PFHD: 8.0 x 10⁻⁸ per hour
• Mission Time: 20 years (EN ISO 13849)
• Safe State on Fault: Safety-related data is logic 0
• Weight: 3.3 kg

Key Features and Benefits

• The scanner monitors 2 protective fields and 8 total fields for flexible zone design.
• It supports 4 field sets and 4 monitoring cases for complex safety logic.
• A 190° scanning angle provides wide coverage with one device.
• The 60 ms response time enables fast reaction in safety circuits.
• Configurable resolution from 30 mm to 150 mm suits various detection tasks.
• SIL 2, PL d, and Type 3 ratings meet high safety requirements.
• The PROFINET IO interface simplifies integration with network controllers.
• Indoor-rated design ensures reliable operation in controlled environments.

Installation Guide

• Mount the sensor head securely in an indoor location with a clear scanning plane.
• Connect the device to a PROFINET IO network with a compatible safety controller.
• Remember that this model has no local inputs or outputs and relies on the network.
• Configure the resolution, response time, and field sets through the controller software.
• Set the multiple samplings between 2 and 16 based on your safety requirements.
• Adjust the automatic reset delay from 120 ms to 4,920 ms as needed.
• Verify the safe state logic 0 behavior during fault simulation.
• Perform a full functional test after installation and before regular operation.

Package List

• 1 x SICK S30A-7111CL Safety Laser Scanner Sensor Head
• 1 x I/O Module
• 1 x Mounting Kit
• 1 x Quick Start Guide

Shipping and Support

• We ship with FedEx, UPS, and DHL for fast and reliable delivery.
• We dispatch orders within 5 days after payment confirmation.
• We offer a 30-day return policy for your peace of mind.
• All units are brand new and original.

FAQ

• Q: What is the protective field range of the S30A-7111CL?
  A: The protective field range is 7 m, and the warning field range reaches 49 m.
• Q: Does this scanner have local inputs or outputs?
  A: No, it operates only in a network with a corresponding controller.
• Q: How many protective fields can this model monitor simultaneously?
  A: It monitors 2 protective fields at the same time.
• Q: What safety ratings does the S30A-7111CL hold?
  A: It holds Type 3, SIL 2, Category 3, and PL d ratings.
• Q: What resolution options are available?
  A: You can configure 30 mm, 40 mm, 50 mm, 70 mm, or 150 mm resolution.
• Q: What is the response time of this scanner?
  A: The response time is 60 ms.
• Q: What shipping methods do you use?
  A: We use FedEx, UPS, and DHL. We ship within 5 days and offer 30-day returns.
