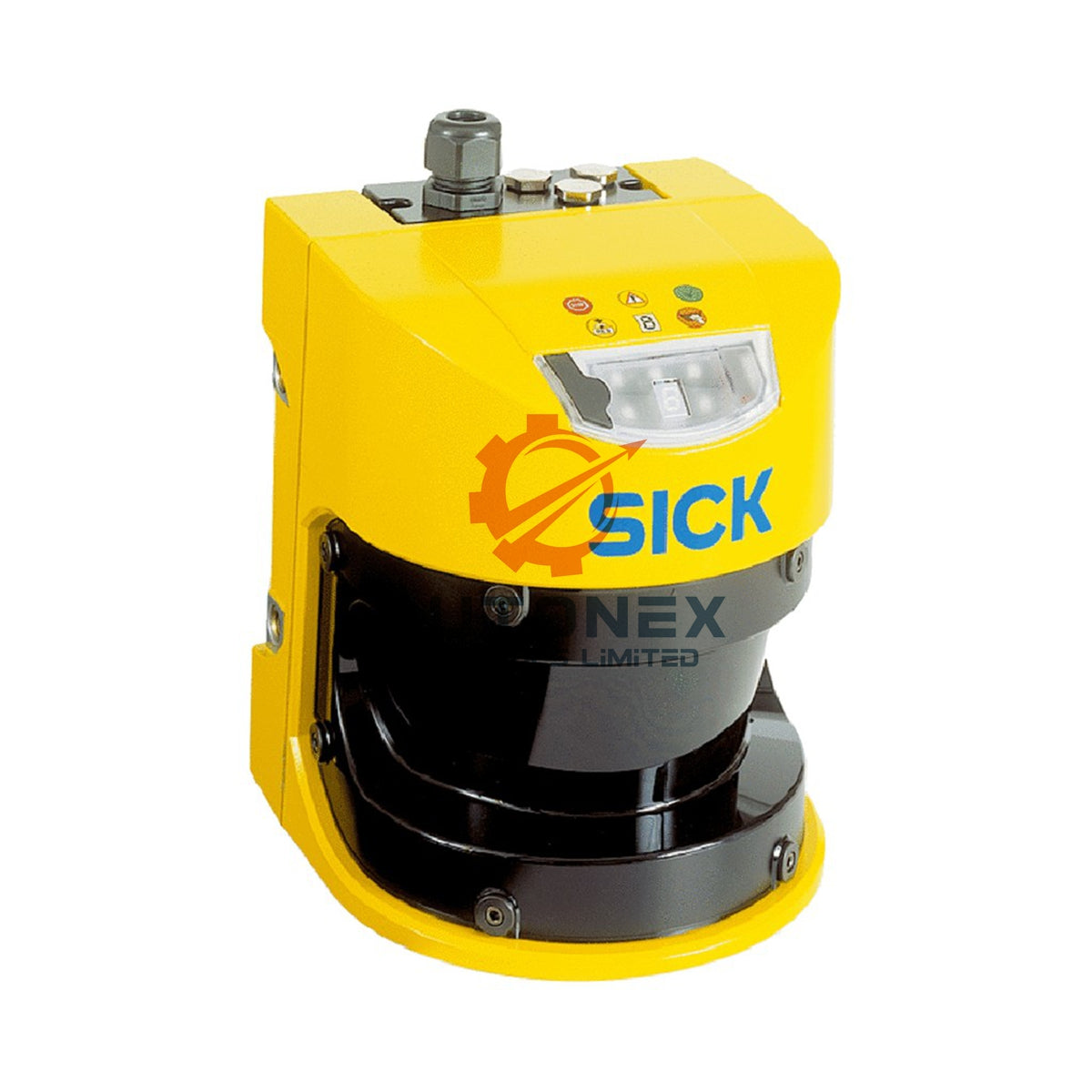

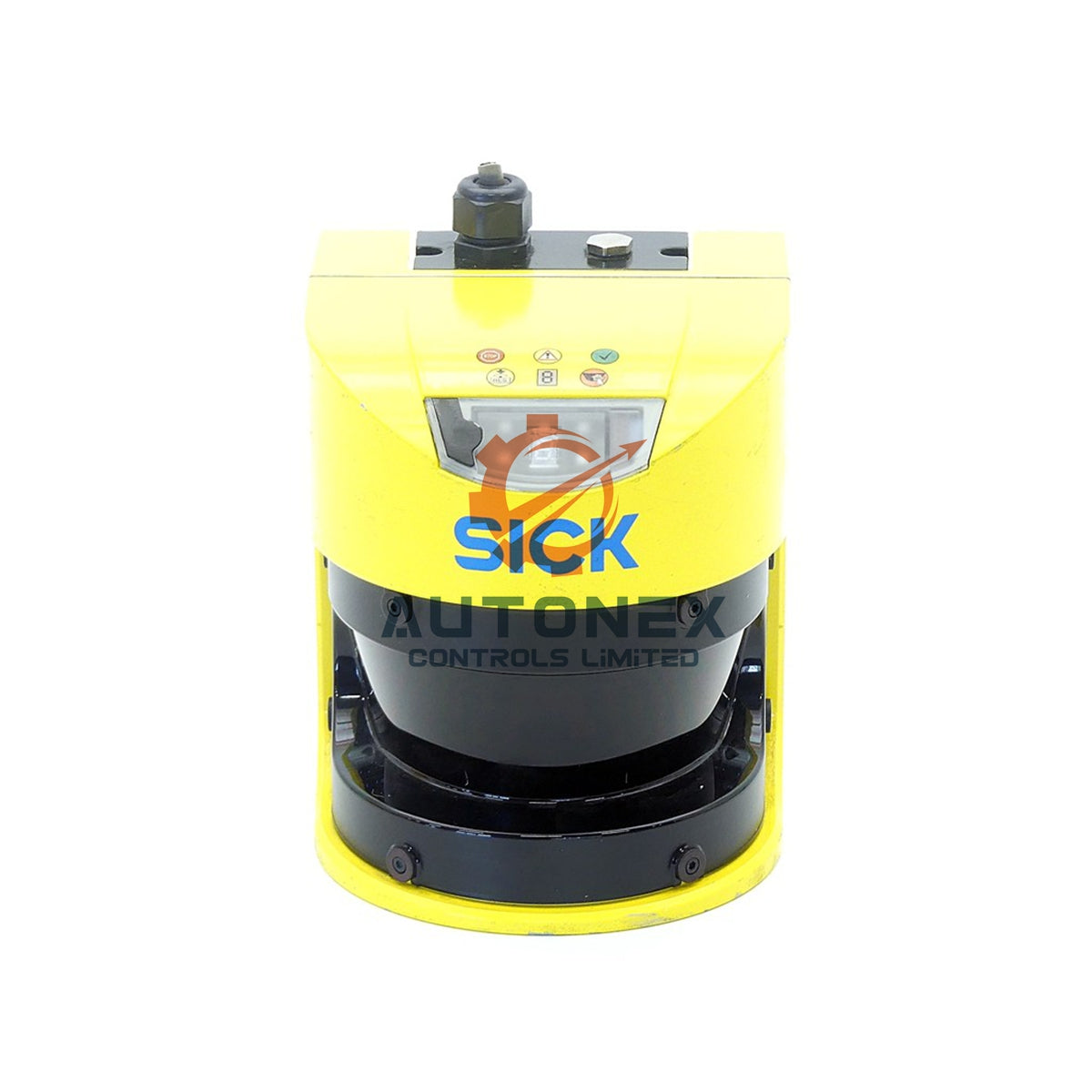

S30A-6011CA SICK Safety Laser Scanner S3000 Advanced

SICK S30A-6011CA Safety Laser Scanner – S3000 Advanced Series

Technical Specifications

• Brand: SICK
• Model: S30A-6011CA
• Series: S3000 Advanced Series
• Alternate Part Number: 1023547
• Type: Safety Laser Scanner
• Measuring Range: 8 m
• Protected Field Range: 5.5 m
• Warning Field Range: 49 m
• Scanning Angle: 190°
• Resolution: 30 mm to 150 mm (configurable)
• Response Time: 60 ms (depends on basic response time and multiple sampling)
• Operating Voltage: 24 VDC
• Operating Voltage Range: 16.8 V to 28.8 V
• Output Type: 2 PNP semiconductors, short-circuit protected, cross-circuit monitored
• Connection Type: System plug with or without connecting cable
• Housing Material: Aluminum die cast
• IP Rating: IP65
• Shock Resistance: 16 g, 16 ms (IEC 60068-2-29)
• Weight: 3.3 kg
• Simultaneously Monitored Fields: 4

Key Features and Benefits

• The scanner monitors up to 4 simultaneous fields, which allows flexible zone control.
• A 190° scanning angle covers a wide area with a single device.
• The 60 ms response time supports quick stopping in safety applications.
• Configurable resolution from 30 mm to 150 mm adapts to different detection needs.
• The IP65 aluminum die-cast housing resists dust and water jets.
• Short-circuit protected and cross-circuit monitored outputs enhance electrical safety.

Installation Guide

• Mount the scanner on a stable surface using the appropriate bracket for your application.
• Keep the scanning plane free from obstructions that could block the 190° field of view.
• Connect the system plug with or without cable to a 24 VDC power supply.
• Verify the operating voltage stays within 16.8 V to 28.8 V for reliable performance.
• Align the scanner so the protected field covers the hazardous area completely.
• Configure the resolution and response time through the SICK safety controller or software.
• Test the outputs and confirm the cross-circuit monitoring works as intended.
• Perform a functional check after installation and before regular operation.

Package List

• 1 x SICK S30A-6011CA Safety Laser Scanner
• 1 x System plug (with or without connecting cable, based on your selection)
• 1 x Mounting kit
• 1 x Quick start guide

Shipping and Support

• We ship with FedEx, UPS, and DHL for fast and reliable delivery.
• We dispatch orders within 5 days after payment confirmation.
• We offer a 30-day return policy for your peace of mind.
• All units are brand new and original.

FAQ

• Q: What is the protected field range of the S30A-6011CA?
  A: The protected field range is 5.5 m, and the warning field range reaches 49 m.
• Q: How many fields can this scanner monitor at the same time?
  A: It monitors up to 4 fields simultaneously.
• Q: What is the response time of this model?
  A: The response time is 60 ms, depending on basic response time and multiple sampling.
• Q: What resolution options does the S30A-6011CA support?
  A: The resolution is configurable from 30 mm to 150 mm.
• Q: What is the operating voltage range?
  A: The scanner operates from 16.8 V to 28.8 V, with a nominal 24 VDC.
• Q: Is the scanner suitable for dusty or wet environments?
  A: Yes, its IP65 aluminum die-cast housing resists dust and water jets.
